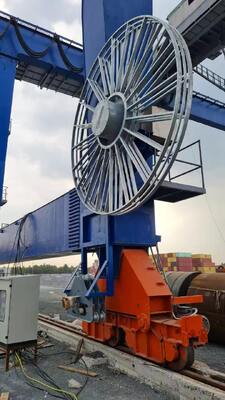

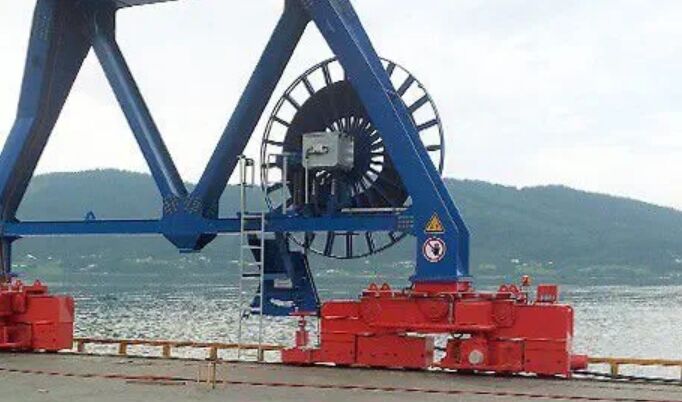

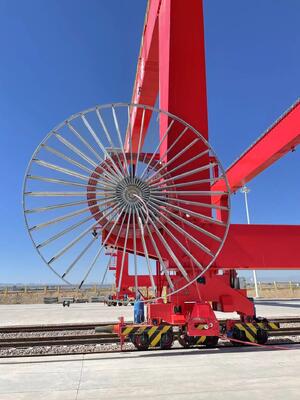

Industrial Crane Cable Reel Motor Driven Retractable Hose Reel Designed for Bridge Gantry Crane and Hoisting Equipment

JARCH Motor-Driven Reels Retractable Hose Reel 250A Cable Reel Drum For higher than 100 kW applications

Product Description

100m spring return cable reel for bridge and gantry crane

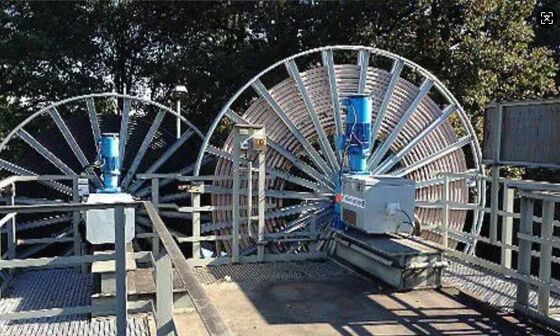

JARCH motor-driven reeling systems are segmented into MAG Drive, SMART Drive, Level Wind Reels, Underground Reels, Trailing Cable Reels, Extension Reels and Cable Protection Systems. The modular and deeply configurable nature of our motor-driven reels ranges brings to your applications all the advantages of modern, systematic and lean serial industrial manufacturing.

As quality and reliability starts with the design, we use rules-based computerized design systems to offer you the configured motor-driven reel best adapted to your application within our fully industrialized range. And a finishing touch from our experts if required.

Based on the comprehensive technology characteristics at home and broad, our company independently

develops and processes the windingdrum in various forms and various specifications with advanced technology,

which is widely used for the electric mobile equipment as the crane,hoisting electromagnet, motor grab, fast-p, buggy ladle etc.

After many years site validation, the products are proved to be functioning smoothlyand be reliable in performance,

which are well received consistent high praise from many units. According to the way of shipping, the winding drumproduced

and processed by our company could be classified into: cable drum, signal drum, hose reel (for transporting gas or liquid).

According tostructure, they are classified into: the method with slip installed inside, slip installed outside and that with

cantilever type. According to the drivingtype, they are classified into:the spring type, external mechanical forces,

type of counterweight, torque electric, constant tension, JQD, hysteretic,type of fluid coupling etc

Selection Guide:

Cable drum are applied for coiling heavy cable and hose. They are driven by torque motor,10 ton single girder gantry crane cable reel and 250A cable reel drum

Features:

1. With large coiling capacity, the cable drum can coil cable or hose of large specification from long distance;

2. Long service life, reliable operation;

3. With torque adjustment and interlocking control device, it's convenient to adjust the coiling strength, and flexible to coil and release;

4. Electric energy is transmitted by the structure of collector slip ring carbon brush, the power supply is continuous and stable.

5. Reverse running is available, it's convenient to change cable.

Packing Methods

100m spring return cable reel for bridge and gantry crane

1. Use the wooden box made of inspection-free plates in line with export requirements, and use plywood with a thickness of 9mm-15mm.

2. The wooden box made of solid wood can meet the requirements of export through fumigation and detoxification.

3 boxes board joint is tight, the box board combination is smooth without dislocation, the cloth nail is reason

able, the reinforcement belt is not less than 2, to meet the requirements of the export

Cables are the most established and obvious media to secure the data transport at the highest speeds through the longest distances. In fact they constitute the backbone of all the top-speed data networks, and specifically the Internet.

Reeling Sytems handle, store and protect flexible cables providing both power and data transmission.

The data transmission medium embedded in these cables can be as simple as one pair of copper wires for low-speed industrial bus up to multiple CAT6 elements including shielded and twisted pairs for multi-gigabit per second Ethernet transmission.

When length, speed, EMC or security requires, the reeling cables will provide the rotary connection through the reel, including multiple Fiber Optics (multi-mode or single-mode) and our unique, super-reliable TFO (Transmitter Fiber Optics) with its elegant continuous fiber ribbon wound on itself.

The industry is improving its machines efficiency through automation and remote control. Both require a flawless secure data stream from multiple hi-res cameras, sensors and control systems that is seamlessly supported by Fiber Optics in our Reeling systems, even in the high-EMI environments of ports, and steel or aluminum mills.
